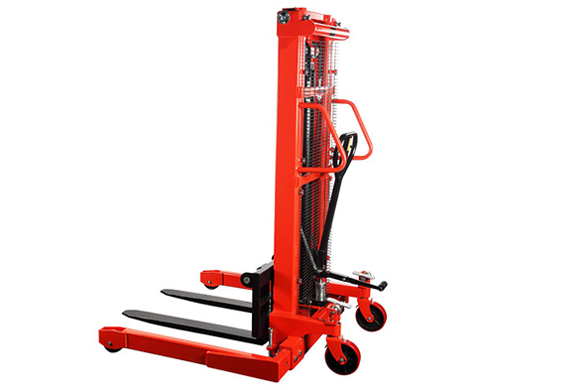

Noblelift Adjustable base legs - SFH22AG-118

Double tap to zoom

Overview

The SFH22AG-118 model is made for lifting loads, skids, racks, and objects. Forks can adjust from side to side to accommodate skid widths. This model comes featured with a fold-away hydraulic foot pump for raising loads.

Features

• Two-swivel and two rigid casters provides four wheel support for heavy loads.
• Include wheel lock and safety screen to ensure safety during operations.

Specifications

Manual Hydraulic Stackers -- Adjustable Base Legs
Model SFH22AG-118
Capacity       lbs 2200
Lifting Height Max.  Inch 118
Lifting Height Min.   Inch 2 3/4
Fork Length  Inch 36
Fork Width   Inch 4
Outer Width of Forks Inch 8.5--33.5
Base Legs I.D.  Inch 36 to 48
Base Legs O.D.   Inch 43 to 54
Overall Length  Inch 56
Overall Width    Inch 43 to 54
Overall Height   Inch 79 1/2
Load Center      Inch 20
Front Caster Dia.        Inch       4
Rear Caster  Dia.           Inch 7
Front Wheel Dia.             Inch 5
Rear Wheel Dia.    Inch 7
Wheel Type    2 Rigid, 2 Swivel
Shipping Weight  lbs 850
