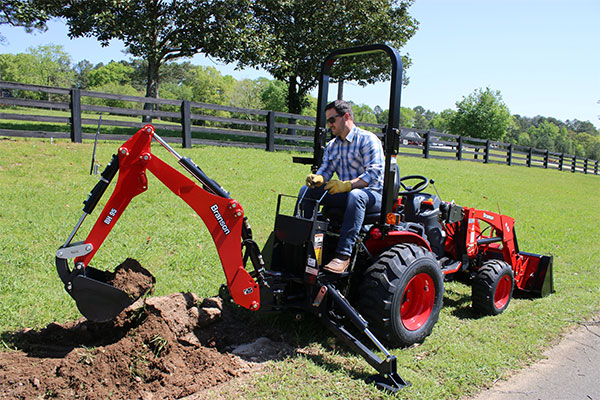

Branson Tractors 2505h

Double tap to zoom

Overview

These tractors have a Heavy Duty Drawbar and Hydro-Max Transmission

Features

• 2 Range HST Transmission
• Hydrostatic Steering and Cruise Control
• One Touch ON/OFF Switch
• Quick Disconnect Loader with Level Indicator and Loader Valve with "Float Position"
• 60 inch Mid Mount Finish Mower

Specifications

General
Drive System
Steering Hydrostatic
Clutch N/A
Battery 12V
Brake Wet Disc
Engine
Model 3TNV80E
Type Yanmar Water Cooled
Combustion System  Swirl Chamber
Aspiration Natural
HP 24.2
RPMs 3000
No. of Cylinders 3
Bore x Stroke 3.15 in x 3.31 in
Displacement 1267 cc
Compression Ratio  23.1 : 1
Air Cleaner Type Single Dry
Fuel Capacity 5.8 gal
Tires
Front Tread 18x8.5-10-4
Rear Tread 26x12-12-4
Dimensions
Overall Length 104 in
Overall Width 45.88 in
Height to Top of ROPS 91.3 in
Wheelbase 57.5 in
Ground Clearance 9.4 in
Weight 1610 lbs
Transmission
Type HST (2 speed)
Max. Travel Speed 7.8 mph
PTO
Type  Independent PTO
Speed Rear 540 / Mid 2000
Power 18.8 hp
Hydraulic System
Type Single Gear Pump with Flow Divider
3-Point Hitch Category 1
Lift Capacity 1323 lbs.
Steering Pump Flow 2.77 lbs.
Main Pump Flow 4.1 GPM
