Heavy-duty and maintenance-free
Steep cam tracks: As the rollers move in steep cam tracks they lift and lower the tine arms quickly and with greatest precision to the effect that the crop stays clean and the windrows are tidy and boxy. The 47 mm (2") diameter tine guiding rollers offer a generous contact area, are protected from ingress of dust and absolutely maintenance-free.
Hard-wearing KRONE DuraMax cam tracks: For greatest longevity, these cam tracks are made from high-tensile and Bainite-tempered cast SG iron which offers exceptional resistance to wear and tear and is absolutely maintenance-free. For this reason, KRONE is able to offer a three-year warranty on these DuraMax cam tracks.
The cardanic rotor suspension
Great flexibility and cleanest rakes
The cardanic rotor suspension: The rotors pivot in and across the direction of travel to give optimum adaptation to undulating ground. A cardanic joint on the arm with two elongated holes prevents the tines from being pressed into the ground or from being left suspended in the air, thereby avoiding crop contamination as well as throwing the grass about.
The central suspension: The rotors suspend centrally across the direction of travel which allows them to produce consistent and high-quality windrows. The special suspension ensures they always stay level as they lift and lower on the headland. In addition, the machine’s weight is distributed uniformly on all wheels of the running gear as it travels down the field.
The Jet Effect
The KRONE Jet Effect prevents the tines from damaging the sward on the headland and ensures the crop stays clean. As the bogies are lowered into work, the rear wheels touch down first before the leading wheels follow. Vice versa, as the rotors lift out it is the leading wheels that lift out first and the rear wheels that follow. This is identical with the take-off and touch-down phases observed with airplanes.
The running gear
Great stability and excellent tracking
The KRONE Tridem running gear: All rotors run on a Tridem running gear from KRONE. Specified as standard, the running gear consists of an extra wide rear axle and a flexible front axle which form a triangle. Occupying all space under the rotor, the construction has the wheels stabilise the rotors exactly in those areas the tines work under load.
The tine arms
Stable running and tidy windrowing
Each tine arm is easily removed: Simply undo two bolts to remove the entire arm complete with bearing and roller.
Folding tine arms: Most Swadro models can be specified with foldable tine arms that reduce the machine's storage and transport height clearly below 4 m (13'2").
KRONE Lift tines
Better and faster – courtesy of KRONE Lift Tines
All rakes in this brochure are specified with the new Lift Tines. The specialty about these is the fact that they are angled in two different positions. This optimized design brings special advantages which have been explored in field trials by KRONE and verified by a DLG test.
KRONE rakes with Lift Tines
Variable working and swathing widths

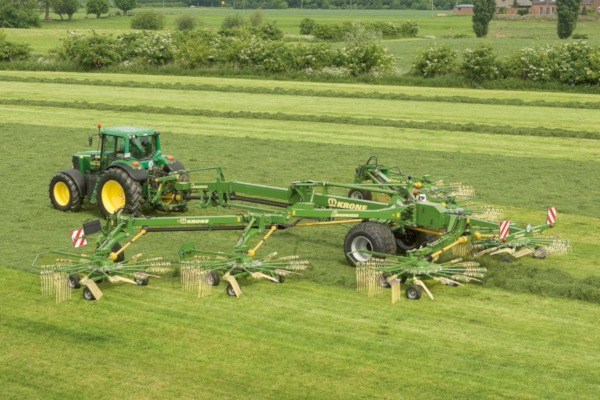

The variable work width: The work width is adapted to the capacity of the following harvester by moving the arms hydraulically into the proper position, thereby varying the working width from 10 m (32'10") to 19 m (62'4"). The two arms are synchronized by the sliding carriage as they move into position.
The flexible windrowing width: An optimal windrow width boosts the overall harvesting efficiency. The width of a windrow is altered by telescoping the rear arms hydraulically, which adjusts the distance between the two rotors at the rear. The telescoping arms adjust to widths between 1.80 m (5'11") and 3 m (9'10").
|Work width mm (inch)||10,000-19,000
|Manual work width control - Standard Standard -||-|
|Hydraulic work width control||Standard|
|No. of rotors||6|
|Area output Approx ha/h (acres/h)||15-20 (37-49.2)|
|Transport width mm (inch)||2,995 (9'10")|
|No. of tine arms||4x13/2x15|
|No. of double tines||328|
|Separate rotor lift/lower feature||Standard|
|Rotor diameter mm (inch)||3,300
|Manual work depth control||-|
|Electric work depth control||Standard|
|Central swath deflector||-|
|Lowering running gear||-|
|Tire size on bogies||16x6.50-8|
|Tire size on running gear||600/50-22.5 PR
|Power requirement Approx. kW/hp||96/130|
|Weight Approx kg (lbs)||9,400 (20,723)|
|Storage length mm (inch)||13,200 (43'4")|
|Folding tine arms||-|
|Rigid tine arms||+|
|Storage height at minimum work width|
|Machine with rigid tine arms mm (inch)||3,995 (13'1")|
|Machine with folded tine arms mm (inch)||-|
