Features

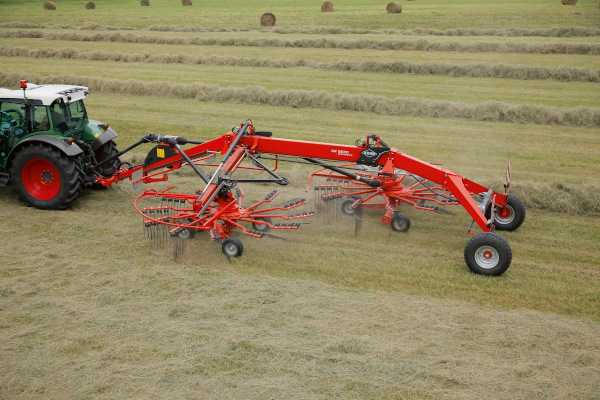

KUHN GA 8030 semi-mounted, twin-rotor rotary rakes are designed for intensive use and simple operation. These side-delivery models excel in a variety of applications, such as managing crop densities, and choosing between one or two windrows. During heavy first cut or light fourth cut, you can control the volume of crop in the windrow. Rake individual swaths or combine the crop from two passes to form one windrow. Simply adjust the working width to produce the best windrow size for your operation. You will particularly appreciate the versatility of one or two windrows, with the GA 8030, when wanting to turn two windrows simultaneously or produce night windrows quickly to reduce dew on the crop.

 KUHN GA 8030 rotary rakes include important innovative features for your benefit. One of these features is the Stabilift suspension, an exclusive design lifts the rotors and locks them in slightly inclined position for time savings, high ground clearance and hydraulic locking during transport. Other design features include the StabiDrive and heavy-duty Masterdrive GIII gearbox. These semi-mounted models have excellent tracking and stability on uneven ground, great maneuverability, reduced dimensions in transport position and easy adjustments.

Specifications

Rake Type 1 side windrow or 2 windrows
Number of rotors 2
Working width (inches) 1 swath: 23'11" / 2 swaths: 27'3"
Working width (m) 1 swath: 7.30 / 2 swaths: 8.30
Minimum Windrow Width (feet) 2'
Maximum Windrow Width (feet) 5'7"
Minimum Windrow Width (cm) 60
Maximum Windrow Width (cm) 170
Swath delivery Right
Number of tine arms per rotor 12
Number of tines per arm 4
Drive Mechanical – free wheel integrated
Gearboxes MASTERDRIVE GIII
Tire type 16x6.50-8
Transport width (m) 2.99
Transport width (feet) 9'10"
Linkage 2-point with STABIDRIVE pivot
Minimum power requirement for PTO (kW) 50
Minimum power requirement for PTO (hp) 68
PTO speed (rpm) 540
Tractor hydraulic equipment 1 SA + 1 DA
Weight (kg) 2 499
Weight (lb) 5 510
Rotor tyre type 11.5x80-15.3
