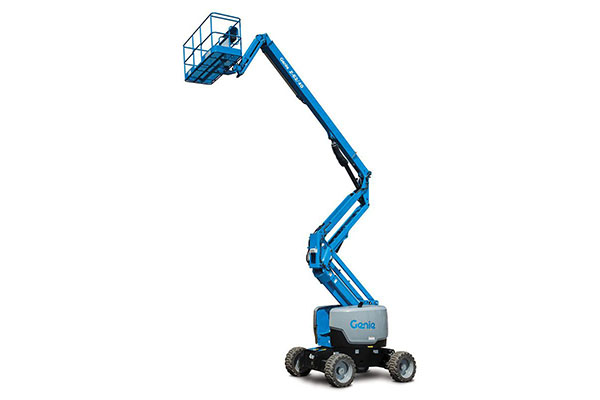

Genie Z™-62/40

Double tap to zoom

Overview

•Articulating boom featuring a working height of 67 ft 11 in (20.87 m) and a horizontal reach of 40 ft 11 in (12.47 m)
•The 5 ft (1.52 m) jib features a 135 degree range of motion to accurately position workers
•The Genie Fast Mast ™ boom system allows operators to descend and retrieve materials and quickly return to working height
•4-wheel drive and full-time active oscillating axles provide traction for gradeability up to 45%
•The new boom lift offers zero rear tail swing and minimal front turntable tail swing in the stowed position and has a below ground reach of up to 5 ft (1.68 m)
•The dual parallelogram lift linkage allows precise positioning of the platform for improved accuracy
•The proportional control system allows for quick, precise access to work areas for increased productivity
•A swing out engine tray allows for easy access to either side of the engine assembly to quickly service the starter, exhaust or filters
•Easy to transport at a compact size of 24 ft and 10.5 in (7.58 m) when stowed with the jib tucked
•All of these features are available on a machine that weighs only 21,900 lbs (9,934 kg)

Features

Measurements
• 67 ft 11 in (12.87 m) working height
• 40 ft 5 in (12.42 m) horizontal reach
• 26 ft 8 in (8.13 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• Zero tailswing
• 360° continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• 2 speed wheel motors
• Hydraulic oil cooler
• Telematics ready connector

Power
• 12V DC auxiliary power
• Engine protection package
• Anti-restart engine protection
• Auto engine fault shutdown
• Intake air heater (Deutz engine)

Platform Options
• Steel 8 ft (2.44 m) (standard)
• Steel 6 ft (1.83 m)
• Steel 8 ft (2.44 m) tri-entry

Jib
• 5 ft (1.52 m) jib boom

Engine Options
• 49 hp (35.79 kW) Deutz diesel T4f* (standard)
• 48 hp (35.79 kW) Perkins diesel T4f*
• 60 hp (56 kW) Ford gas/LPG

Drive Options
• 2WD
• 4WD
• 4WS

Axle Options
• Active oscillation (standard on 4WD)
• Non-oscillating (2WD only)

Tire Options
• Rough terrain air-filled (standard)
• Rough terrain foam-filled
• High flotation air-filled
• Sealant treated air-filled
• Rough terrain non-marking (air or foam-filled)

Specifications

Model Z™-62/40
Working Height* 67 ft 11 in (20.87 m)
Width 8 ft 2 in (2.49 m)
Horizontal Reach 40 ft 11 in (12.47 m)
Up & Over Clearance 26 ft 8 in (8.13 m)
Lift Capacity 500 lbs (227 kg)
